LP2980IM5-3.3-NOPB Micropower 50 mA Ultra Low-Dropout Regulator IR Emitting Diode

LP2980IM5-3.3-NOPB Micropower 50 mA Ultra Low-Dropout Regulator IR Emitting Diode

Features

► Ultra low dropout voltage

► Output voltage accuracy 0.5% (A Grade)

► Guaranteed 50 mA output current

► Smallest possible size (SOT-23, micro SMD package)

► Requires only 1 µF external capacitance

► < 1 µA quiescent current when shutdown

► Low ground pin current at all load currents

► High peak current capability (150 mA typical)

► Wide supply voltage range (16V max)

► Fast dynamic response to line and load

► Low ZOUT over wide frequency range

► Overtemperature/overcurrent protection

► −40˚C to +125˚C junction temperature range

General Description

The LP2980 is a 50 mA, fixed-output voltage regulator designed specifically to meet the requirements of battery-powered applications

Using an optimized VIP™ (Vertically Integrated PNP) process, the LP2980 delivers unequaled performance in all specifications critical to battery-powered designs:

Dropout Voltage. Typically 120 mV @ 50 mA load, and 7 mV @ 1 mA load.

Ground Pin Current. Typically 375 µA @ 50 mA load, and 80 µA @ 1 mA load.

Sleep Mode. Less than 1 µA quiescent current when ON/ OFF pin is pulled low.

Smallest Possible Size. SOT-23 and micro SMD packages use an absolute minimum board space. Minimum Part Count. Requires only 1 µF of external capacitance on the regulator output.

Precision Output. 0.5% tolerance output voltages available (A grade). 5.0V, 3.3V, and 3.0V versions available as standard products

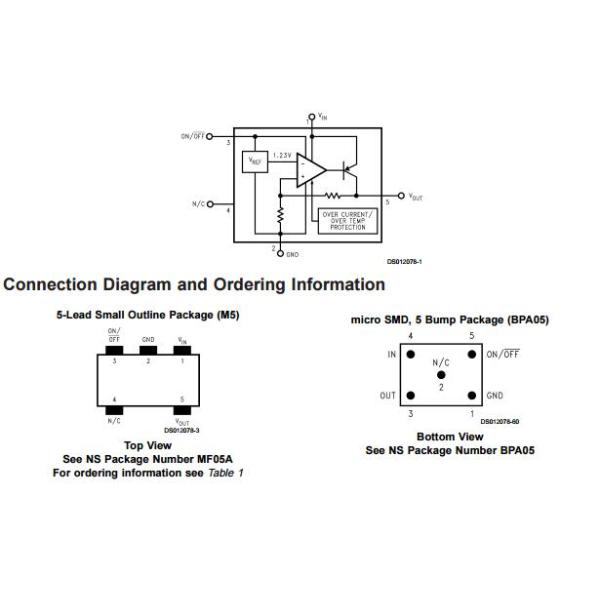

Block Diagram
